LoRaWAN Smart Pasture IoT Solution from Shenzhen Suan Intelligent Technology

Suan Intelligent: End-to-End Tracking Collar + Industrial Gateways + Bespoke Web/App Platforms

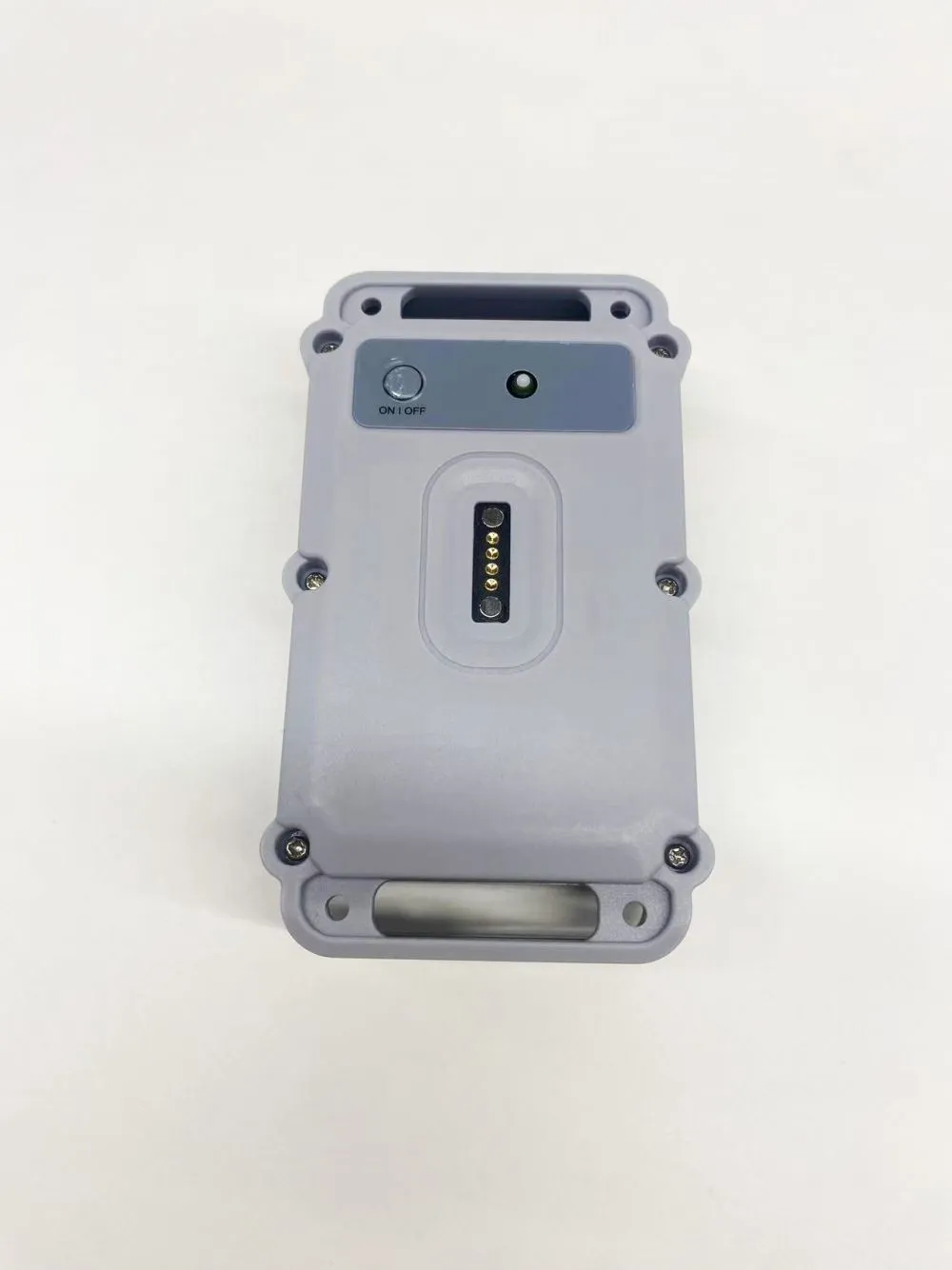

The SA-L122LoRa+GPS collar is a wireless asset monitoring sensor developed by Suan Technology based on the standard LoRaWAN protocol. Combining highprecision GPS positioning technology with Bluetooth scanning functionality, it enables rapid and accurate location determination in complex indoor and outdoor environments. Its built-in MEMS three-axis accelerometer preciselymonitors the devices operational status and tilt angle variations. The product features an intelligent positioning mode adaptation system: when deployed outdoors in open areas it activates a combined GPS and Beidou positioning system for precise location tracking;upon entering indoor spaces,it automatically switches to Bluetooth beacon positioning by communicating with pre-deployed beaconsfor seamless coverage across the entire area. Additionally, the locator includes an anti-theft detection system that immediately triggers  a buzzer alarm and sends abnormal alert notifications to the management platform upon detecting unauthorized disassembly attempts.The locator features a compact design with a small size that facilitates easy installation.It is equipped with a rechargeable lithium battery and supports optional solar power options, effectively extending device battery life and significantly reducing operational costs. This product is widely applicable in areas such as corporate asset monitoring, movable property supervision, livestock assettracking, bulk commodity monitoring, and shared bicycle management

Functional Characteristic:

1. Based on the standard LoRaWAN protocol, suitable for asset monitoring across multiple domains.

2. High-precision dual-mode navigation positioning and Bluetooth scanning for accurate indoor and outdoor location determination .

3. Supports sports mode/cycle reporting mode to meet various application scenarios.

4. Built-in MEMS three-axis accelerometer to monitor device movement or tilt status

5. Features an anti-tampering automatic alarm that triggers a buzzer warning when unauthorized disassembly occurs.

6. Compact in size and easy to install, featuring a solar-powered system for extended battery life

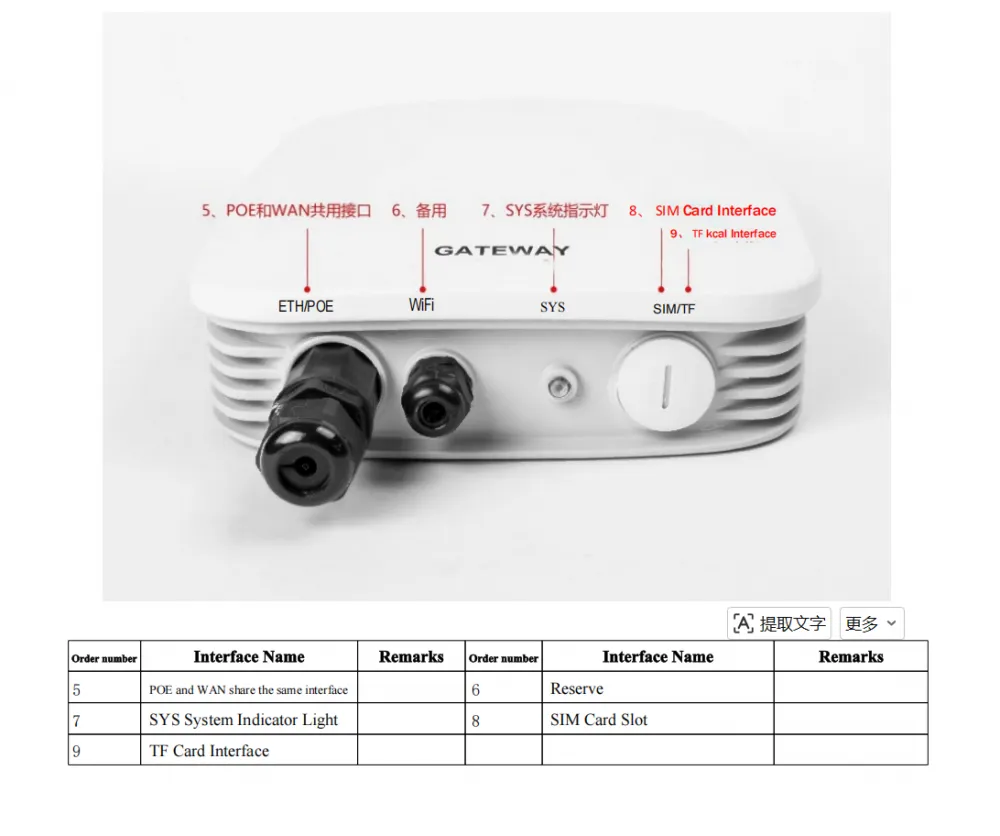

SA5000LA Application-Oriented Gateway Router

The SA5000LA is an IoT application-grade gateway router built on the low-power, wide-area network LoRaWAN protocol, delivering energyefficient, portable, and secure local bidirectional wireless communication for IoT devices. It supports multiple wireless connectivity options—including LoRa, 2G/3G/4G, Wi-Fi, and GPS—enabling customers to effortlessly deploy customized IoT control systems and deliver tailored smart solutions. The SA5000LA features a star-shaped architecture, where front-end node devices establish wireless communication with one or multiple  SA5000LA gateways via a single hop, enabling seamless connectivity between end devices and cloud servers; alternatively, they can connect to cloudservers via standard IP. It finds extensive applications in livestock tracking management,movable asset (mortgage) monitoring, power cable surveillance, smart street lighting, smart agriculture, and smart environmental protectioninitiatives.

Welcome to contact us to get the technical sheet.
